C7 Cable Tail
C7 Cable Tail
|
Pin-out |
L1 Pin |
L2 Pin |
L3 Pin |
Ground |
Common |
Up |
Down |
| C7-30 | 1 | 2 | 3 | 4 | 6 | 5 | 7 |
| C7-31 | 3 | 2 | 1 | 5 | 7 | 4 | 6 |
| C7-32 | 1 | 3 | 7 | 5 | 4 | 6 | 2 |
| C7-33 | 1 | 2 | 7 | 5 | 3 | 4 | 6 |
| C7-34 | 1 | 2 | 3 | 5 | 7 | 4 | 6 |
| C7-35 | 1 | 2 | 3 | 5 | 7 | 6 | 4 |
| C7-36 | 2 | 1 | 3 | 4 | 6 | 5 | 7 |
| C7-37 | 2 | 1 | 3 | 4 | 6 | 7 | 5 |
| C7-38 | 1 | 2 | 3 | 5 | 6 | 4 |
7 |
Looking for a replacement cable tail? We'll get you the right tail you require to return your hoist to working order in no time. Electric chain hoists require maintenance and care to keep them running properly, and it's common to receive hoists back from a tour that are in desperate need of servicing. Our accessories and replacement parts for CM chain hoists are extensive, and we carry all of the necessary products to replace virtually anything on your hoist with a brand new part.Â

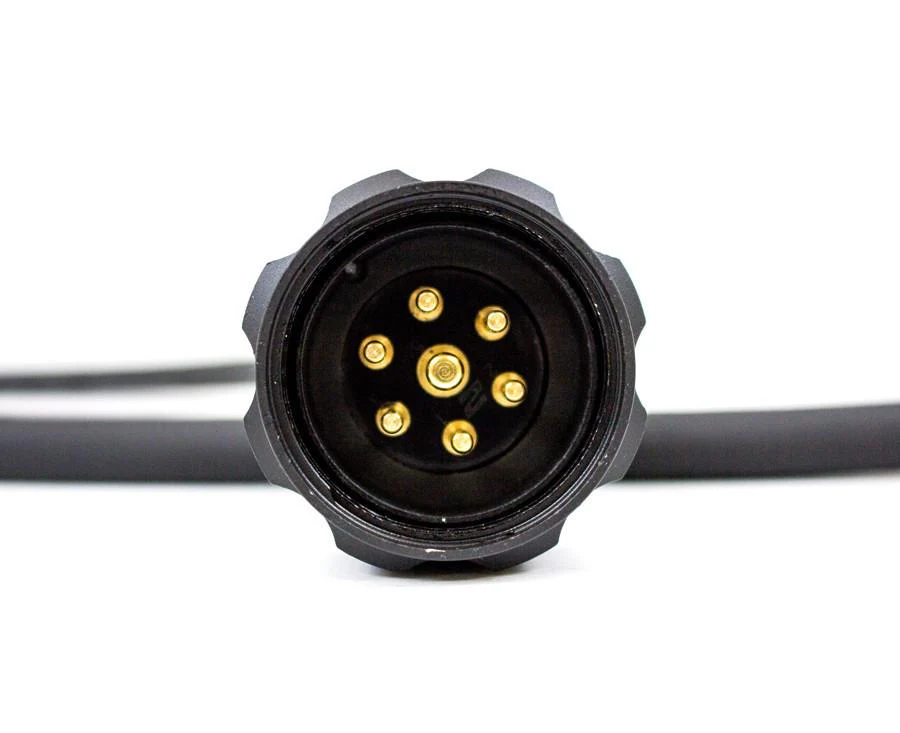

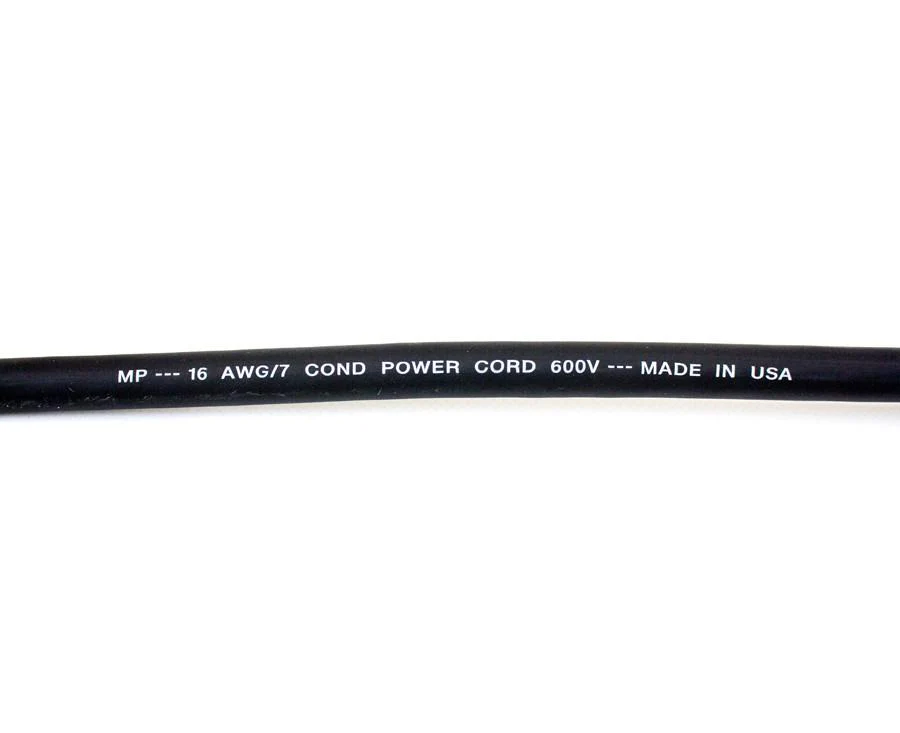

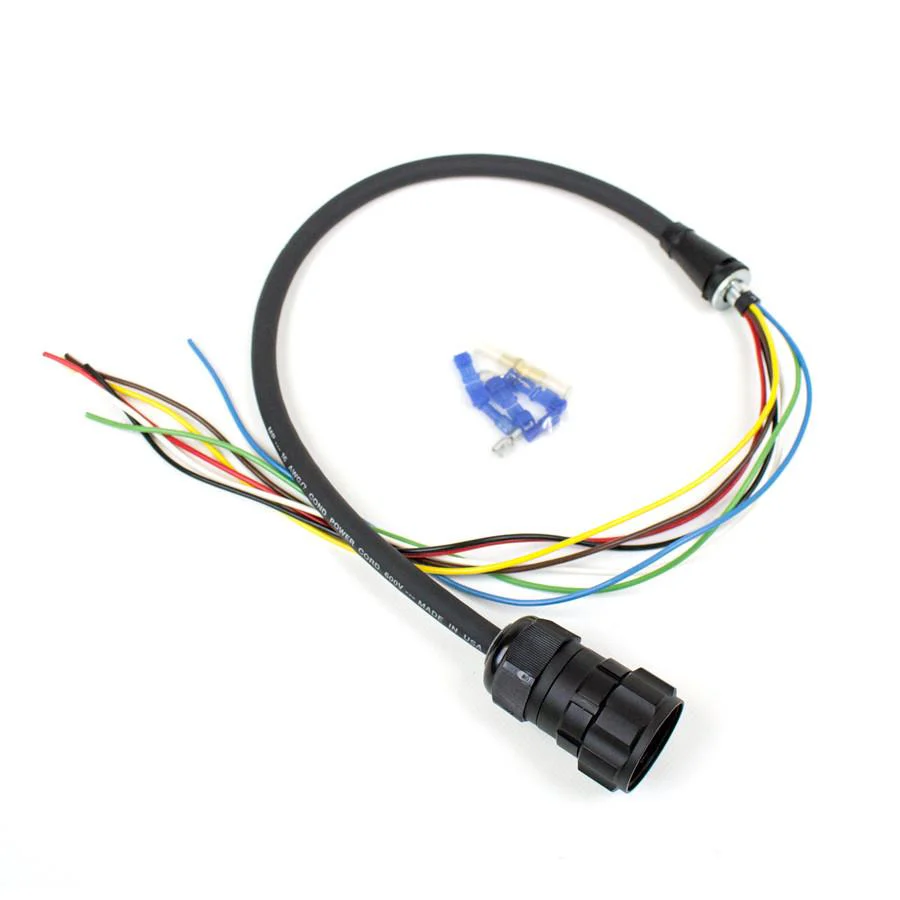

This product is a C7 (Ceep 7) cable tail, manufactured on-site at Mountain Productions. All of our cables are assembled by our own specialists in house, and we only use the best materials. The C7 (Ceep 7) connector features an aluminum alloy shell with a hard, non-conductive black anodized coating. We assemble the boot end of the tail onsite, leaving you with a functional part ready for use.
Â
Original: $124.09
-65%$124.09
$43.43Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
C7 Cable Tail
|
Pin-out |
L1 Pin |
L2 Pin |
L3 Pin |
Ground |
Common |
Up |
Down |
| C7-30 | 1 | 2 | 3 | 4 | 6 | 5 | 7 |
| C7-31 | 3 | 2 | 1 | 5 | 7 | 4 | 6 |
| C7-32 | 1 | 3 | 7 | 5 | 4 | 6 | 2 |
| C7-33 | 1 | 2 | 7 | 5 | 3 | 4 | 6 |
| C7-34 | 1 | 2 | 3 | 5 | 7 | 4 | 6 |
| C7-35 | 1 | 2 | 3 | 5 | 7 | 6 | 4 |
| C7-36 | 2 | 1 | 3 | 4 | 6 | 5 | 7 |
| C7-37 | 2 | 1 | 3 | 4 | 6 | 7 | 5 |
| C7-38 | 1 | 2 | 3 | 5 | 6 | 4 |
7 |
Looking for a replacement cable tail? We'll get you the right tail you require to return your hoist to working order in no time. Electric chain hoists require maintenance and care to keep them running properly, and it's common to receive hoists back from a tour that are in desperate need of servicing. Our accessories and replacement parts for CM chain hoists are extensive, and we carry all of the necessary products to replace virtually anything on your hoist with a brand new part.Â
This product is a C7 (Ceep 7) cable tail, manufactured on-site at Mountain Productions. All of our cables are assembled by our own specialists in house, and we only use the best materials. The C7 (Ceep 7) connector features an aluminum alloy shell with a hard, non-conductive black anodized coating. We assemble the boot end of the tail onsite, leaving you with a functional part ready for use.
Â
