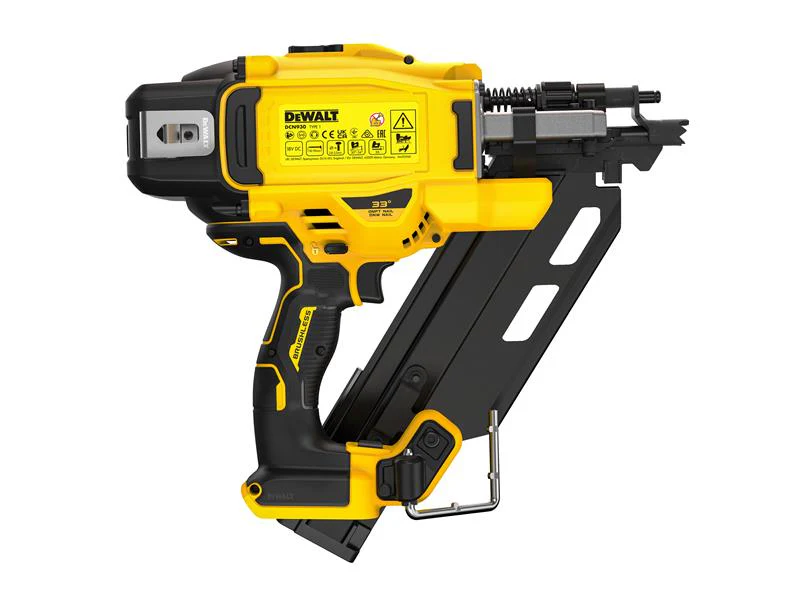

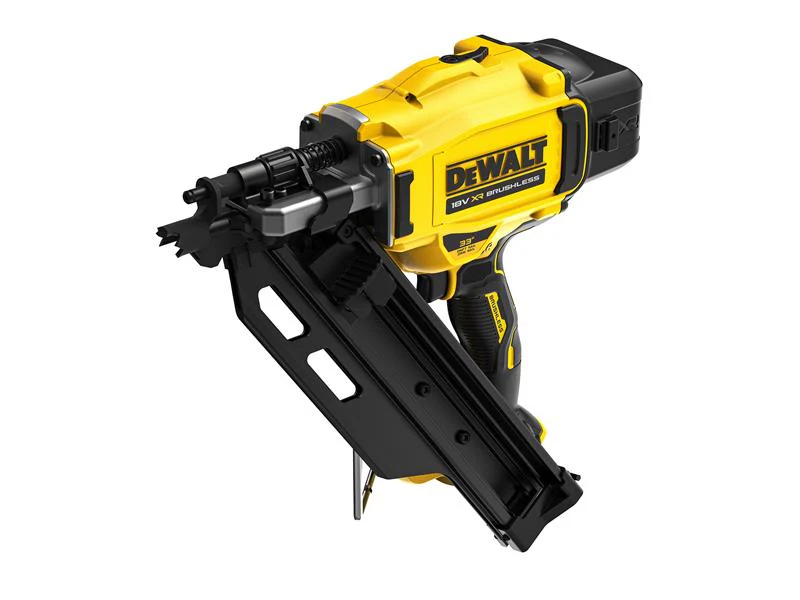

DeWALT Power Tools DCN930N XR Framing Nailer 18V Bare Unit

The DEWALT DCN930 XR Framing Nailer has been engineered to deliver more power, productivity and durability. Its DEWALT XR Brushless motor enables gas free true cordless operation. Designed to deliver more power to drive nails more consistently and faster. The tougher driver blade and magnesium magazine improve durability on the jobsite. Ideal for a wide range of first fix applications such as timber framing, stud work and roof battens.

The optimised size allows this nailer to fit between 400mm joist centres which improves ease of use along with the increased depth range adjustment, improved magazine loading system and metal rafter hook. Two operating modes allow you to choose from bump for precision placement and sequential for faster application speeds and up to 2 nails per second.



---

Key Features:

• High-performance DEWALT XR Brushless motor for cordless gas-free operation
• Toughened driver blade and magnesium magazine for enhanced durability
• Optimised size fits between 400mm joist centres for greater accessibility
• Dual operating modes: bump and sequential firing up to 2 nails per second
• Ideal for first fix applications such as timber framing, stud work, and roof battens

---

Specifications:

• Nail Diameter: 2.8-3.3mm
• Nail Length: 50-90mm
• Nail Angle: 30-34°
• Head Geometry: Clipped or Offset Round
• Magazine Angle: 33°
• Actuating Mode: Sequential/ Contact Trip
• Weight: 3.9kg without battery

---

References:

• Manufacturer: DeWALT Power Tools
• Model Number: DCN930N
• Power Source: 18V XR Battery (Bare Unit – battery not included)
