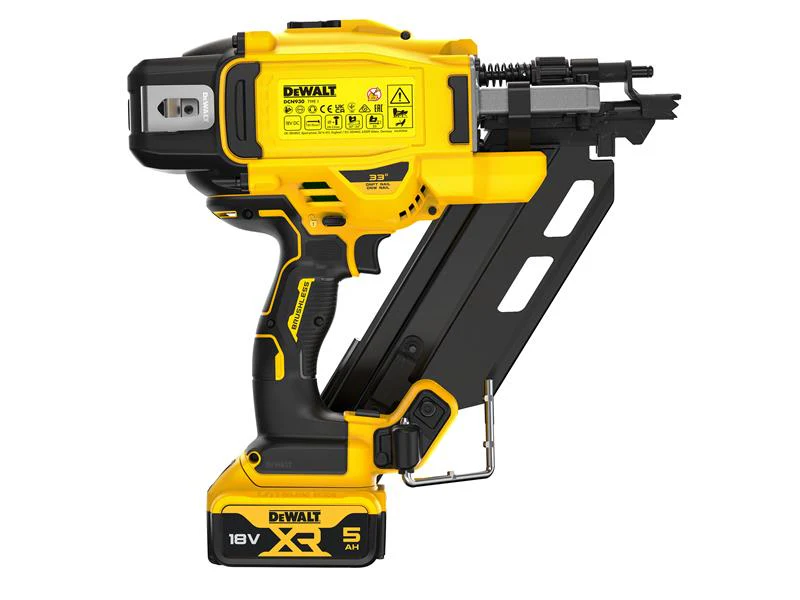

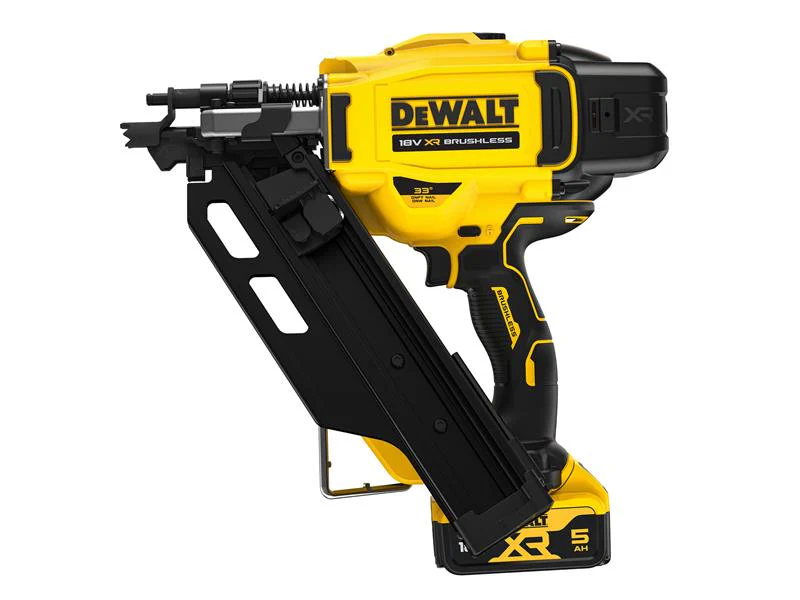

DeWALT Power Tools DCN930P2 XR Framing Nailer 18V 2 x 5.0Ah Li-ion

The DEWALT DCN930 XR Framing Nailer has been engineered to deliver more power, productivity and durability. Its DEWALT XR Brushless motor enables gas free true cordless operation. Designed to deliver more power to drive nails more consistently and faster. The tougher driver blade and magnesium magazine improve durability on the jobsite. Ideal for a wide range of first fix applications such as timber framing, stud work and roof battens.

The optimised size allows this nailer to fit between 400mm joist centres which improves ease of use along with the increased depth range adjustment, improved magazine loading system and metal rafter hook. Two operating modes allow you to choose from bump for precision placement and sequential for faster application speeds and up to 2 nails per second.

---

Key Features:

• DEWALT XR Brushless motor for gas free true cordless operation
• Engineered for high power output, driving nails more consistently and quickly
• Durable magnesium magazine and tougher driver blade for rugged jobsite conditions
• Compact size fits between 400mm joist centres for better accessibility
• Dual operating modes: bump for precision, sequential for speed (up to 2 nails/sec)

---

Specifications:

• Nail Diameter: 2.8-3.3mm
• Nail Length: 50-90mm
• Nail Angle: 30-34°
• Head Geometry: Clipped or Offset Round
• Magazine Angle: 33°
• Actuating Mode: Sequential/ Contact Trip
• Weight: 3.9kg without battery

---

References:

• Ideal for timber framing, stud work, and roof battens
• Improved magazine loading system for enhanced usability
• Integrated metal rafter hook for convenient storage on-site
