Doughty Lightweight Quick Trigger Clamp

The Doughty Lightweight Quick Trigger Clamp is a durable, all-weather solution designed for secure and efficient rigging. Made from high-quality 316 stainless steel and AW6082 T6 aluminium, it offers reliable performance for outdoor events and professional truss applications.

Key Features:doughty-engineering

• Part of the new All Weather clamp range
• Manufactured with 316 stainless steel and AW6082 T6 grade parts
• High tensile extruded aluminium quick trigger clamp
• Suitable for 38mm to 51mm diameter tubes
• Ideal for hanging moving heads on trussing without damaging cords

---

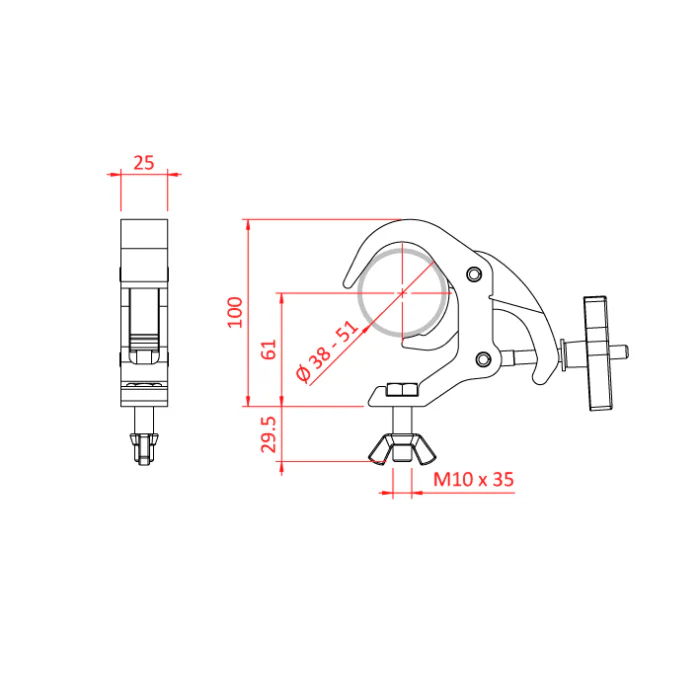

Specifications:

• Working Load Limit (WLL): 50Kg
• Width: 25mm
• Slotted to hold captive an M10 nut or bolt head
• Supplied with an A4 grade stainless steel M10 X 35 bolt and wing nut
• Available in powder coated black

---

References:

• TÜV APPROVED
• Ideal for outdoor events
• Compatible with 38mm to 51mm diameter tubes
