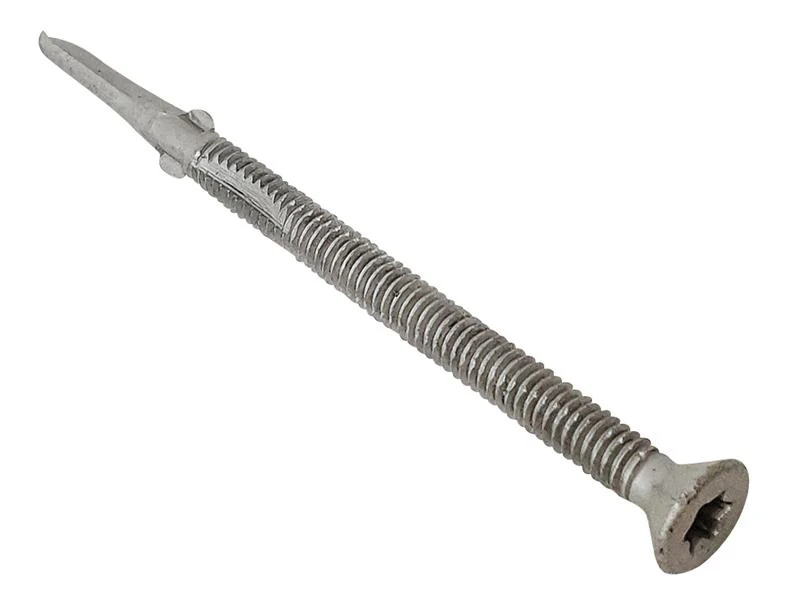

ForgeFix TechFast Timber to Steel CSK/Wing Screw No.3 Tip 5.5 x 120mm Box 50
ForgeFix TechFast Timber to Steel CSK/Wing Screw No.3 Tip 5.5 x 120mm Box 50
Forgefix TechFast Timber to Steel CSK/Wing Screws are used to join timber to steel frame buildings. The screws are fitted with breakaway wings that create a clearance hole to protect thread from engaging timber when drilling through. Breakaway wings will ream a hole, then break-off when they contact the metal surface to be drilled. The thread will then engage with metal. They have a TORX® compatible insert for a higher transmission of power. With improved countersinking from recessed ribs.
Fire and corrosion resistant. Complies with EU Safety, Health and Environmental requirements.
These Forgefix TechFast Timber to Steel CSK/Wing Screws have the following specification:
Size: 5.5 x 120mm
Clamping Thickness: 100mm
Effective Thread Length: 99mm
Pack Size: 50
Drill Tip: No.3
No.3 drill tip for self-drilling heavy gauge steel up to 5mm
Original: $10.04
-65%$10.04
$3.51Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
ForgeFix TechFast Timber to Steel CSK/Wing Screw No.3 Tip 5.5 x 120mm Box 50
Forgefix TechFast Timber to Steel CSK/Wing Screws are used to join timber to steel frame buildings. The screws are fitted with breakaway wings that create a clearance hole to protect thread from engaging timber when drilling through. Breakaway wings will ream a hole, then break-off when they contact the metal surface to be drilled. The thread will then engage with metal. They have a TORX® compatible insert for a higher transmission of power. With improved countersinking from recessed ribs.
Fire and corrosion resistant. Complies with EU Safety, Health and Environmental requirements.
These Forgefix TechFast Timber to Steel CSK/Wing Screws have the following specification:
Size: 5.5 x 120mm
Clamping Thickness: 100mm
Effective Thread Length: 99mm
Pack Size: 50
Drill Tip: No.3
No.3 drill tip for self-drilling heavy gauge steel up to 5mm
