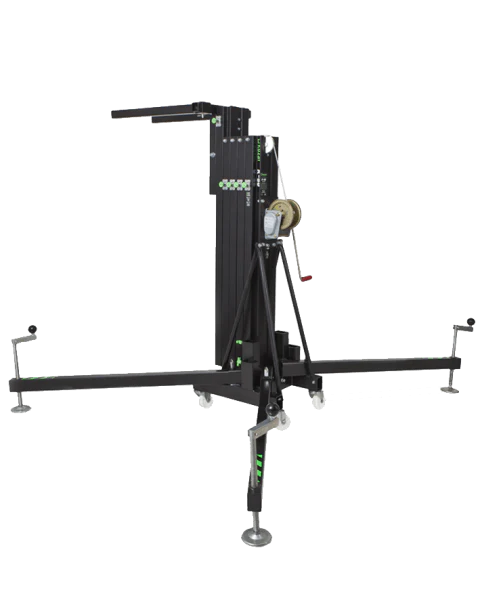

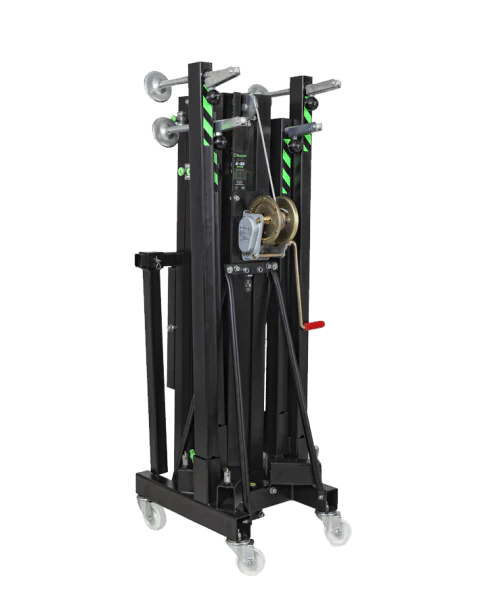

Kuzar Tower Lift (Model K-50)
K50 Tower LiftÂ
The lifting tower undergoes a very strict quality control process during the manufacture.
This is our classic tower 'COMPACT' K-50. It not only surpasses its predecessor with a height of 5.95 m but also incorporates new features such as the 'Block' & 'Lift' positions of the 'KAT' locks (See the User Manual) that can block the sections automatically while raising the tower. It also protects your cargo in the unlikely event that the 6mm diameter cable breaks.
The K-50 belongs to the new range of aluminium towers POLIVALENTES, Kuzar is able to raise structures like audio systems PA and Line Array. Kuzar lifter, model K-50 has been designed for vertically lifting lighting, trussing etc in the professional sound and light sector.
Data Sheet & User Manual & Cert
Features:
- Cable: Anti-torsion & Anti-corrosion. 6mm diameter. Steel DIN 3060. Tensile strength 180 kg/mm2.
- Winch: Certified with an automatic brake a long handle
- Wheels:Â Make transportation easierÂ
- Anti-rust protection priming paint bathed black steel, covered with cured polyester dust
- Kuzar Automatic Trigger (KAT)Â on each section which automatically slots into the sections during elevation, locking them in place. 'Block' position and 'Lift' position are featured.
- Adjustable stabilizer plates in the legs with nonslip rubber base support
- Made in Spain
Specifications:
- Folded Height:Â 1.57m (5.15')
- Maximum Height: 5.95 m (19.52’)
- Maximum Load: 300kg (661.4 lb)
- Minimum Load: 25kg (55 lb)
- Weight:Â 164kg (361.56lb)
- Work Surface: 1.91m x 2.15m (6.26’ x 7.05’)
- Folded Base Area: 60 cm x 45 cm (1.97’ x 1.48’)
- Construction Material: Aluminum Profiles 6082T6
 Tower Lift Accessories for K-50:
-
Line Array System Support: Lift anchor to mount in a central flight point when you hang your line-array system on your tower lift.
- Kuzar Shackle:Â This is the screw-pin shackle used to connect Kuzar Line Array System Support for lifting line array system.
-
Quick Trigger Clamps: Quickly mount and remove lights, speakers or other equipment to the truss.
- Others you may be interested in Prolyte Truss, VMB Tower Lift
WARRANTY. All Kuzar lifts come with 2 years warranty. This warranty period is from the date of purchase. Kuzar will repair any defect product caused by either faulty materials or poor workmanship free of charge within this period as long as the parts are fitted by an authorized Kuzar dealer. Should the product have been manipulated in any way or a repair attempted by an unauthorized dealer the warranty will be invalid. This warranty does not cover damage occurred by improper use.
