Line Array Tower Lift

Kuzar has launched the new range of polyvalent aluminium towers, the K-31. Like the other products, k-31 tower lift undergoes a very strict quality control process during the manufacture

It has 4 legs with an adjustable anti-slip rubber stabilizing plate for each. With a longer tower section than the K-30, it is capable of lifting STRUCTURES, AUDIO SYSTEMS, LINE ARRAY, PA even higher.

Kuzar Automatic Trigger (KAT) automatically slots into the sections during elevation, locking them in place. It also protects your cargo in the unlikely event that the cable breaks.

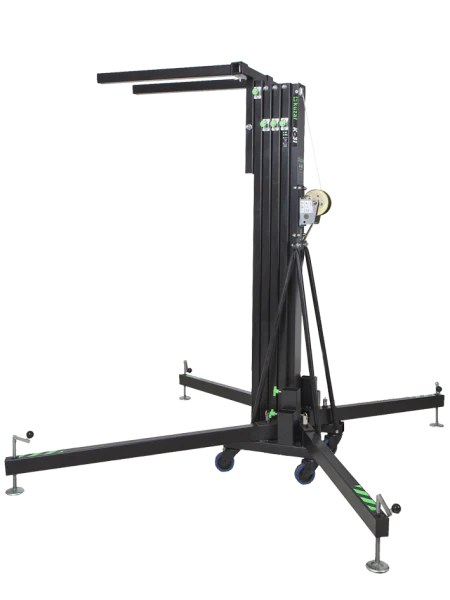

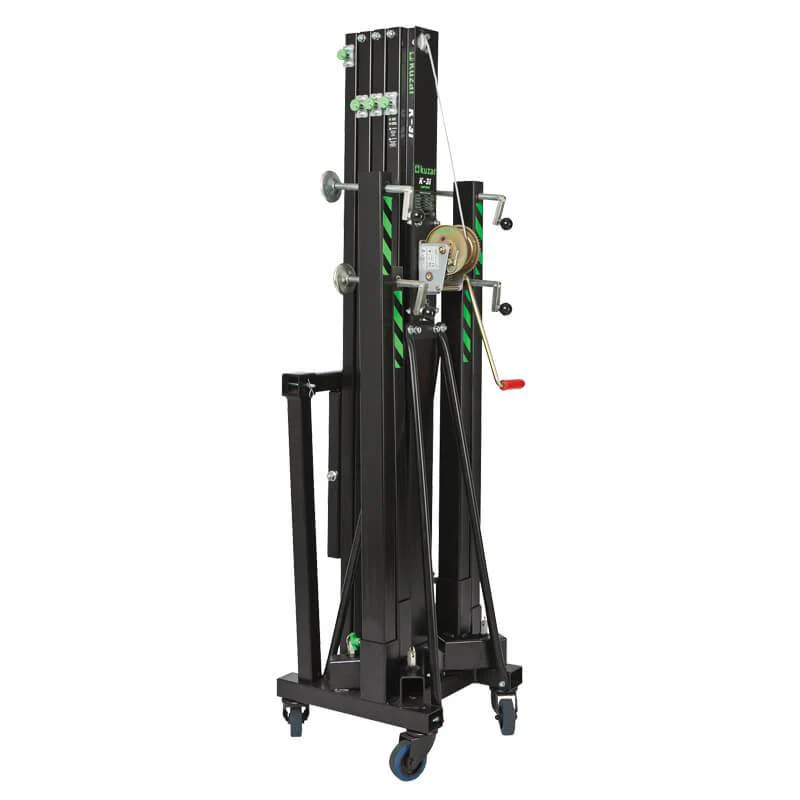

Kuzar Tower Lift, model K-31 has been designed for vertically lifting lighting, trussing etc in the professional sound and light sector.

User Manual - Cert

---

Features:

• Anti-rust protection priming paint bathed black steel, covered with cured polyester dust.
• Kuzar Automatic Trigger (KAT) on each section which automatically slots into the sections during elevation, locking them in place.
• The anchor of the legs secured by safety catches.
• Adjustable stabilizer plates in the legs with nonslip rubber base support.
• Spirit level for vertical alignment.
• Swivel wheels for easy transportation
• Made in Spain

Specifications:

• Folded Height: 1.87m (6.13’)
• Maximum Height: 6.15m (20.17’)
• Maximum Load: 250kg (551.16lb)
• Weight: 110kg (242.5lb)
• Work Surface: 1.80 x 1.69m (5.90’ x 5.54’)
• Construction material: Aluminium profiles 6082T6
• Cable: Steel DIN 3060 with tensile strength 180 kg/mm2 .
  Anti-torsion & anti-corrosion. Ø5mm cable diameter.
• Winch: 450 kg certified

Tower Lift Accessories for K-31:

• Line Array System Support: Lift anchor to mount in a central flight point when you hang your line-array system on your tower lift.
• Kuzar Shackle: This is the screw-pin shackle used to connect Kuzar Line Array System Support for lifting line array system.
• Quick Trigger Clamps: Quickly mount and remove lights, speakers or other equipment to the truss. There are a lot more Doughty Clamps available.

• Others you may be interested in Prolyte Truss, VMB Tower Lift

You can also check the full range of our tower lifters here.

Important Warranty Information

WARRANTY. All Kuzar lifts come with 2 years warranty. This warranty period is from the date of purchase. Kuzar will repair any defect product caused by either faulty materials or poor workmanship free of charge within this period as long as the parts are fitted by an authorized Kuzar dealer. Should the product have been manipulated in any way or a repair attempted by an unauthorized dealer the warranty will be invalid. This warranty does not cover damage occurred by improper use.
