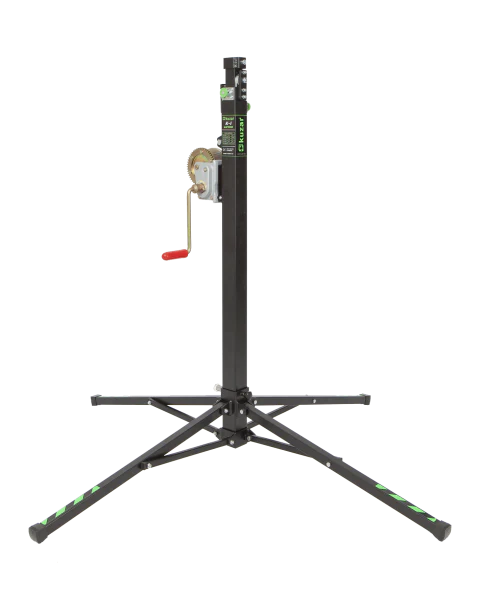

K1 Tower Lift

This lifting tower undergoes a very strict quality control process during their manufacture. It is ideal for lifting lights and is fully prepared to work with indoor or outdoor structures.

There are 4 folding legs for easy opening. Its ultra-light property contributes to convenient transport. Security comes from our automatic trigger KAT lock that blocks sections automatically while raising the tower. It also protects your cargo in the unlikely event that the 4mm diameter steel cable breaks.

Kuzar lifter, model K-1 has been designed for vertically lifting lighting, trussing etc in the professional sound and light sector.

Data Sheet - User Manual - Cert

Features:

• A three-profile telescopic system operated by steel cable driven by pulleys with metal protected bearing pads
• Cable: Anti-torsion & Anti-corrosion. 4mm diameter. Steel DIN 3060. Tensile strength 180 kg/mm2.
• Winch: Certified with an automatic brake
• Anti-rust protection priming paint bathed black steel, covered with cured polyester dust
• Made in Spain

Specifications:

• Folded Height: 1.26m (4.1')
• Maximum Height: 3.2 m (10,5’), with extension bar 3.8m (12,5’)
• Maximum Load: 125kg (275.6 lb)
• Net Weight: 21kg (46lb)
• Work Surface: 1.5m x 1.5m (4.9' x 4.9')
• Adapters: 35mm Diameter
• Main Construction material: Steel profiles EN 10305
• Finish: Silver or Black

You can also check the full range of our tower lifters here.

Important Warranty Information

WARRANTY. All Kuzar lifts come with 2 years warranty. This warranty period is from the date of purchase. Kuzar will repair any defect product caused by either faulty materials or poor workmanship free of charge within this period as long as the parts are fitted by an authorized Kuzar dealer. Should the product have been manipulated in any way or a repair attempted by an unauthorized dealer the warranty will be invalid. This warranty does not cover damage occurred by improper use.
