Reutlinger Cable Holder with Fork & Side Exit Wire - Type 50/66 SV III

It is a range of Reutlinger Cable Holders fitted with Fork, featuring a side exit wire. They perfectly suspend static loads from wire rope without tools or damaging the rope. Two sizes are available - type 50 SV III and type 66 SV III.

These Reutlinger Cable Holders are also specifically designed for applications which demand compliance with the accident prevention regulations ''DGUV Regulation 17'' (formerly "BGV C1"), such as stage productions and fair booths.

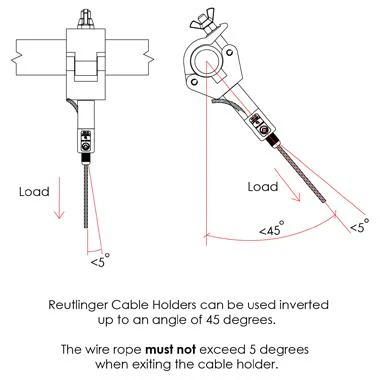

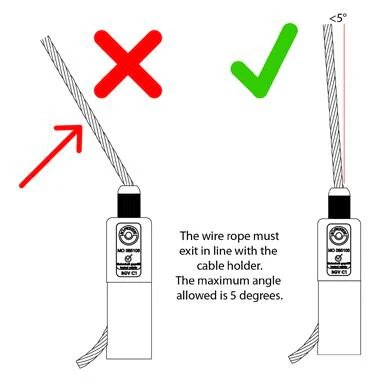

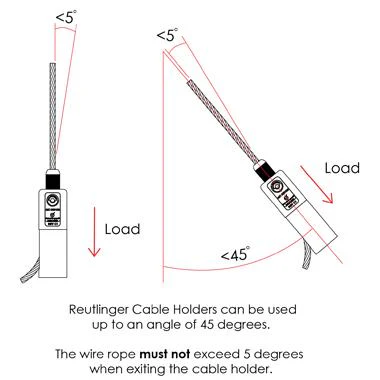

NOTE: When exiting the cable holder, the wire rope cannot exceed 5 degrees (shown in the diagram). For any inquiries, please contact us via chat.



Safety Precautions & User Manual - Type 50, Type 66 and Type 80

---



Features and Benefits:

• Simple to use without tools

• Infinitely adjustable
• No cable damage
• Time-saving
• Secure load suspension due to safety compliance (DGUV Regulation 17)
• Barely visible in the stage setting due to the non-reflective black coating

Specifications:

Type	SWL	Overall Length / Weight	Fork Opening
Type 50	4mm Wire - 60 Kg 5mm Wire - 90 Kg	165mm / 0.5kg	14mm
Type 66	6mm Wire - 135 Kg 6.35mm Wire - 150 Kg	176mm / 0.5kg	13mm


Other types of Reutlinger Cable Holder:

• Side Exit Wire

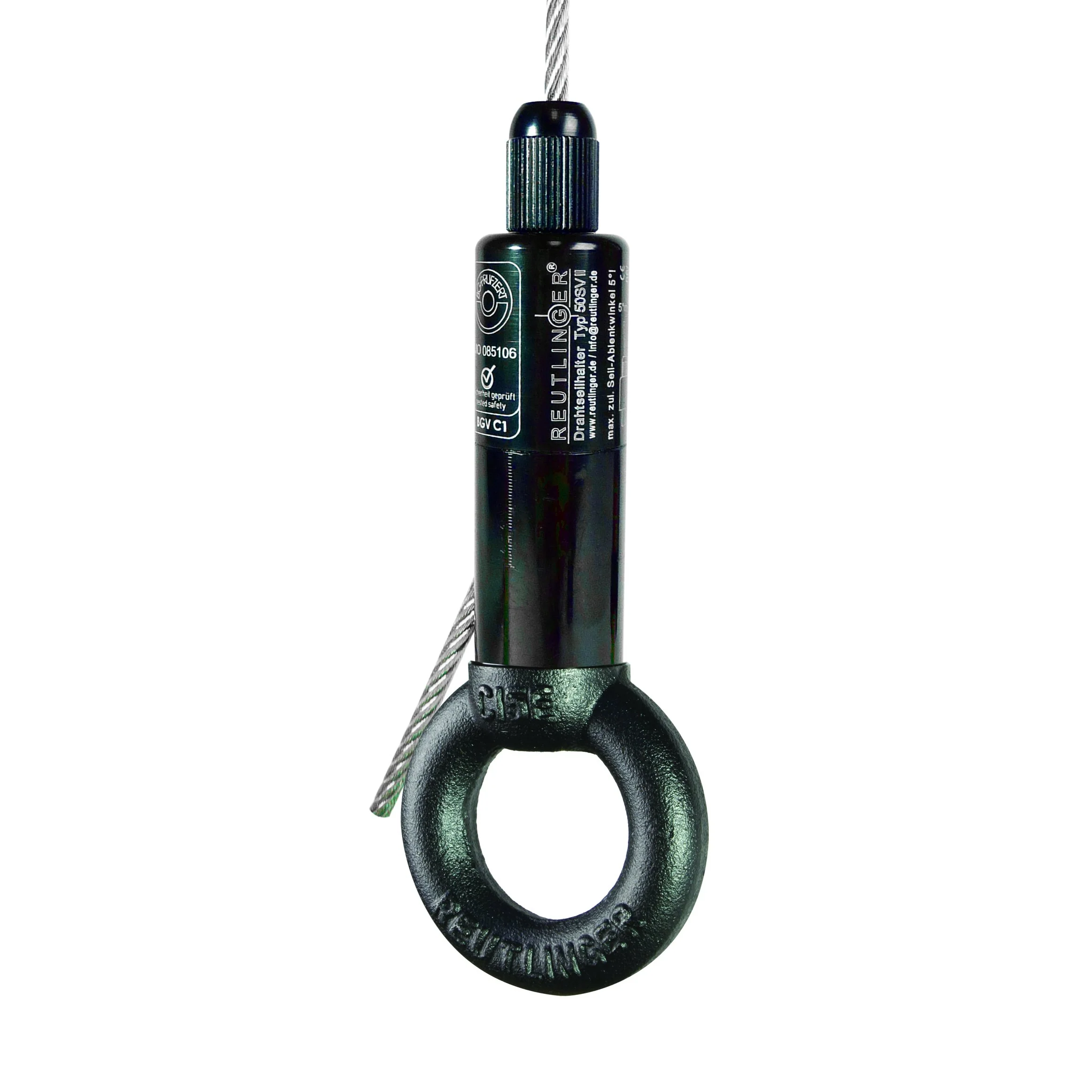

• a Ring at one end
• a Ring at one end (Side Exit Wire)
• a Fork at one end
• Male Thread at one end
• a Doughty Clamp at one end
