YAM – Machine Jacks with Lifting Claw

Capacity: 2 – 15 t

Machine jacks with lifting claw are used in applications where space below the load is restricted, preventing the use of traditional lifting equipment.

Typical applications include lifting, positioning and transportation of machines, heavy steel constructions or similar loads, as well as general repair and assembly work.

The jacks are also suitable for leveling high-rise warehouses, heavy-duty scaffolds, large frameworks and similar structures.

---

Features

• Safe lifting of machines with extremely low clearance
• Integrated safety pressure valve to prevent overload
• Large base for increased stability under load
• Pump lever rotates through 270° (excluding YAM-2)
• Same load can be lifted on either the head or the claw
• Spring return of the lifting claw (YAM-5 and YAM-10 only)
• Precision-adjustable lowering valve
• Supplied ready to use including pump lever and filled with oil

---

YAM Machine Jacks – Technical Data

Model	Art.-No.	Capacity on claw (t)	Stroke (mm)	Weight (kg)
YAM-2	N13100912	2	113	8
YAM-5	N13100627	5	120	19
YAM-10	N13100628	10	145	38
YAM-15.1	N13100914	15	140	53

---

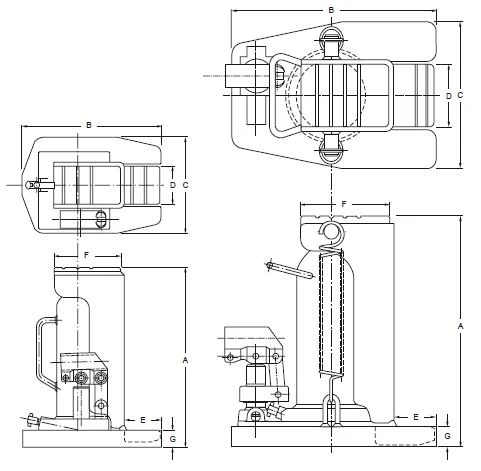

Dimensions YAM (mm)

Model	A	B	C	D	E	F	G
YAM-2	235	180	125	50	50	85	16
YAM-5	290	257	182	75	57	117	26
YAM-10	325	280	240	100	60	150	33
YAM-15.1	344	321	258	110	60	168	33
