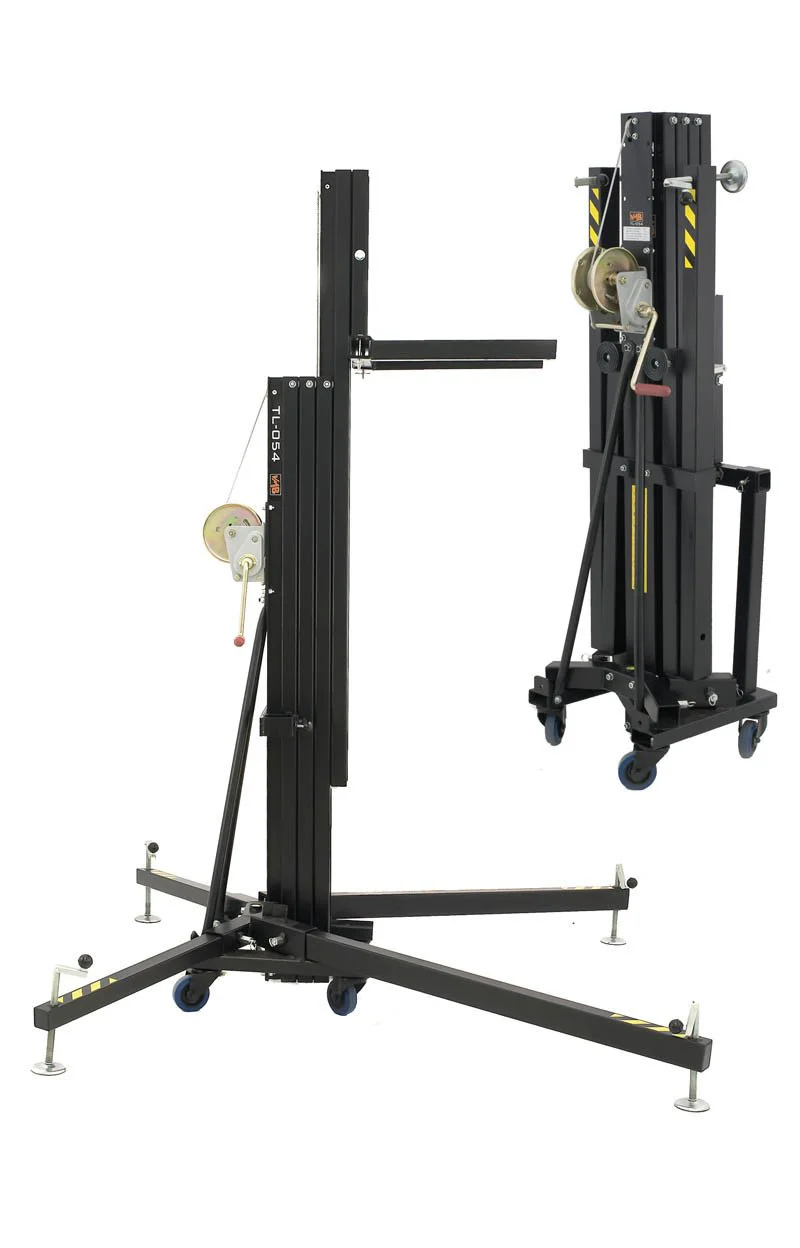

VMB Tower Lift

Lifter made with a structural steel base and 6082-T6 aluminium alloy for the sections. Designed to lift heavy loads from the ground, and keep them at high altitudes. It undergoes very rigorous testing, under strict conditions and they are monitored continuously during the manufacturing process.

This lifting tower / front load tower lift is very compact and easy to handle, it has 4 swivel castors on the base and can fit through a door. Powerful stabilizers in the legs, to level the lifter in difficult terrains, with a slight slope. It has two adjustable steel load forks that support the load, either supported on top of it or hung underneath.

Black finish, with epoxy powder paint offering great resistance.

A wide range of accessories is offered. They are combined with this lifter to allow you to increase the number of applications. One of the most used accessories, for example, is the RH-2 transport kit, which serves to tilt the lifter, horizontally and make the transportation in vans, trucks, etc. easier.

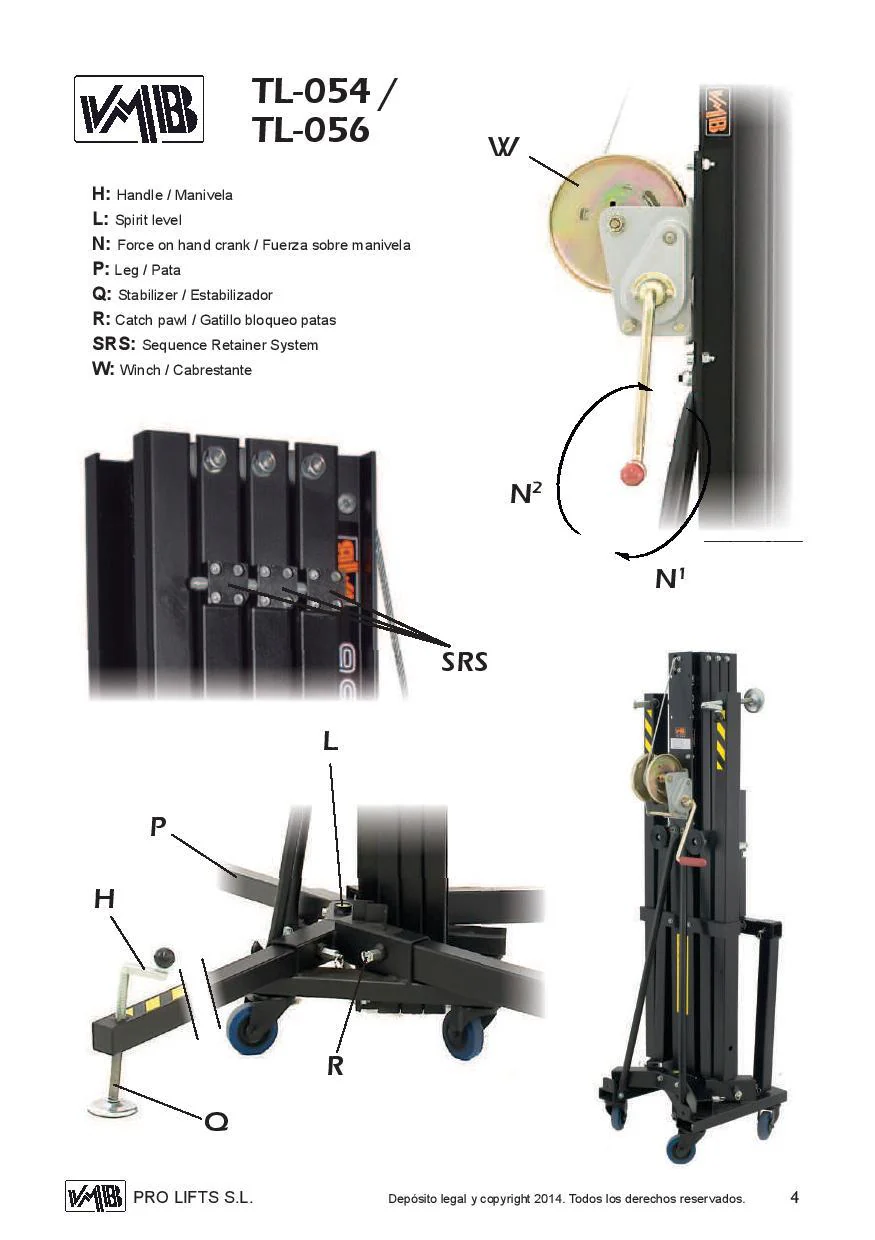

The TL-054 features the inertial pendulum ILS safety system. It also has the special SRS Retentor system, patented by VMB, which guarantees that the tower lifts aluminum sections will rise in order, and most importantly: automatically.

A 2-year warranty and stock of spare parts for 5 years are offered. In addition a service is provided to review and repair your lifter at VMB factory in Spain.

Data Sheet - User Manual - Cert

Features:

• 4 swivel castors for easy transportation
• Powerful stabilizers in the legs

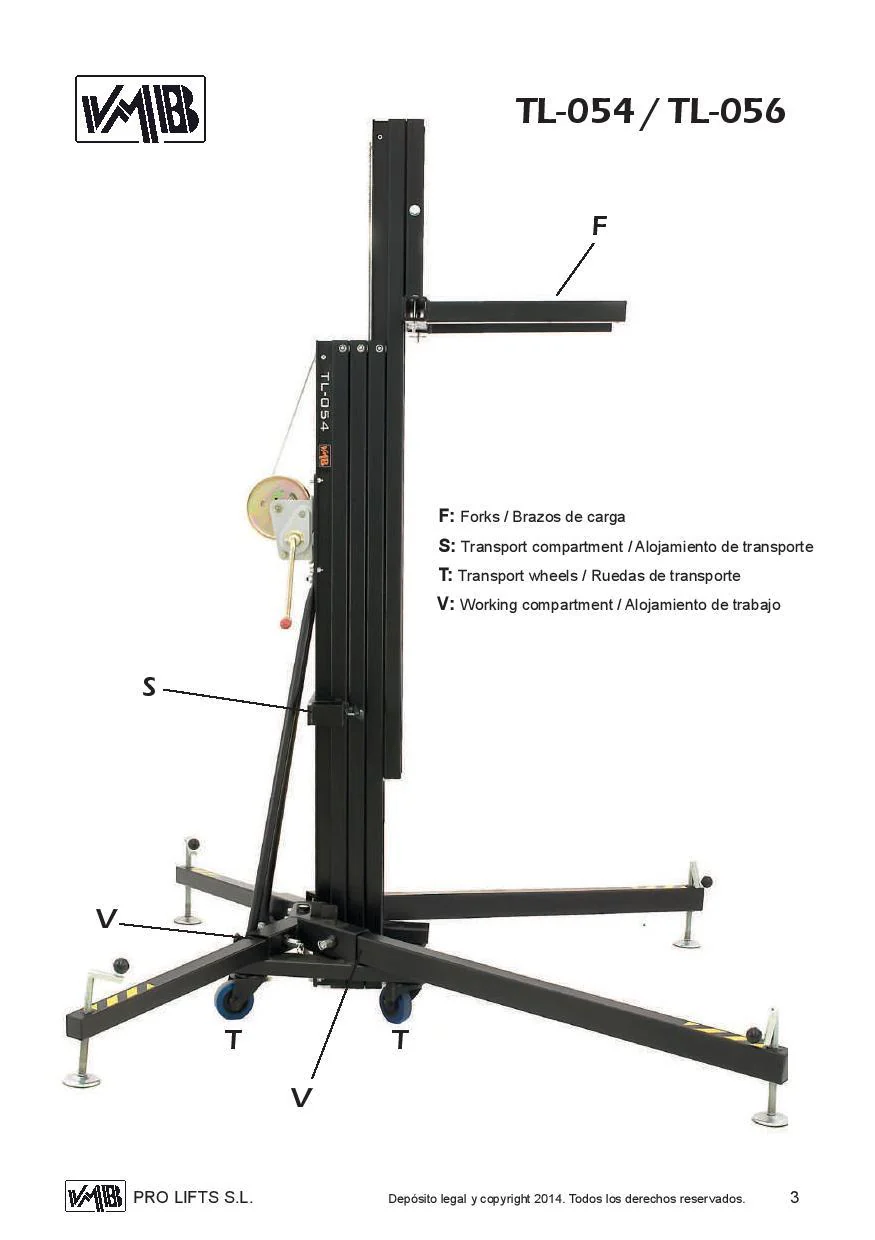

• Two adjustable steel load forks to support the load
• The automatic brake of the winch can hold the load securely.
• With ILS security system (Inertial Lock Security) the VMB system automatically blocks each profile and the lifting carriage in the unlikely event of cable breaking.

Specifications:

• Maximum Height: 5.45m (17.8’)
• Maximum Load: 220kg (485 lb)
• Work Surface: 2 x 2m (6.6 x 6.6’)
• Folded Height: 1.70m (5.6’)
• Weight: 87kg (191 lb)
• Winch: 900kg
• Adaptor: Forks
• Material: Steel and 6082-T6 Aluminum Alloy
• Finish: Black finish, with epoxy powder paint
  (Please refer to the Data Sheet to learn more)
